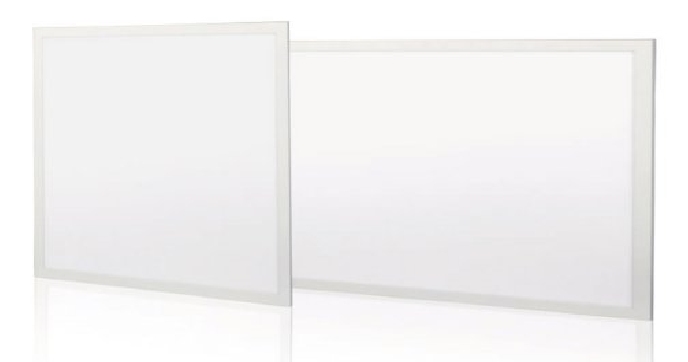

LiteBlue LED flat panel is an edge-lit LED panel incorporating the latest technology of circadian LiteBlue LED packages
and 0-10 Volt dimming flickerless driver. It is designed to provide the healthful aspects to the users, on top of energy-saving options.
The following three healthful benefits are illustrated as follows,
|
|
|
|
|
| |
|
|
| |
| 1. |
High Melanopic Ratio - more efficient to regulate circadian entrainment. It is achieved by emitting about 90% of
bue-turquoise light within the blue light content.
|
|
Color
Temperature
|
Equivalent Melanopic Lux (EML)
Melanopic Ratio (MR)
|
| CCT
|
LiteBlue LED
(465 nm pump)
|
Standard LED
(450 nm pump)
|
Increase/Decrease
|
| 5000K
|
1.03
|
0.82
|
+26%
|
| 4000K
|
0.84
|
0.68
|
+24%
|
| 3000K
|
0.65
|
0.51
|
+26%
|
|
| |
| 2. |
Ocular health - achieved by emitting relatively low amount of blue-violet light, which is about 10% of the blue light content.
For details, please click here.
- Less sensitive to Retinal Blue Light Hazard according to IEC/EN 62471 (Photobiological safety of lamps and lamp systems).
- Lower risk of macular degeneration (measured by apoptosis, or cell death) due to blue-turquoise light , which is one
of the major causes leading to AMD (Age-Related Macular Degeneration).
|
| |
| 3. |
Minimum flicker - 0.2% (typ.) Flicker Percent is well below the NOEL (No Observation Effect Level) limit being specified by
IEEE 1789 (IEEE Recommended Practices for Modulating Current in High-Brightness LEDs for Mitigating Health Risks to Viewers).
For details, please click here.
|
|
|
| |
| |
| Features |
| ● |
Powered by LiteBlue LED of high efficiency to regulate circadian entrainment |
| ● |
Low LB (Retinal Blue Light Radiance) |
| ● |
No-risk level of 0.2% (typ.) Percent Flicker |
| ● |
0-10V dimming |
| ● |
Power factor > 0.90 |
| ● |
Luminous efficacy = 100 lm/W minimum |
| ● |
CRI = 80% minimum |
| ● |
Lifetime of 50,000 hours |
| ● |
5-year warranty |
| |
|
|
| |
Dimensios and Power |
|
| |
| Model |
Size |
Power |
Color Temperature |
Efficacy |
Input Volyage |
| PL-35W-66-28-LB |
2'x 2' |
35W |
5000K CCT
4000K CCT
3000K CCT |
100 lm/W |
100-277 VAC |
| PL-40W-66-28-LB |
2'x 2' |
40W |
| PL-50W-126-28-LB |
2'x 4' |
50W |
| PL-60W-126-28-LB |
2'x 4' |
60W |
| PL-25W-123-28-LB |
1'x 4' |
25W |
| PL-40W-123-28-LB |
1'x 4' |
40W |
|
|
